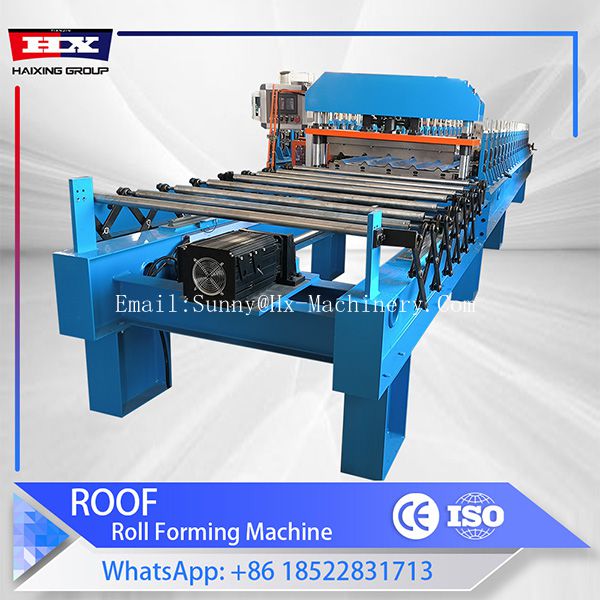

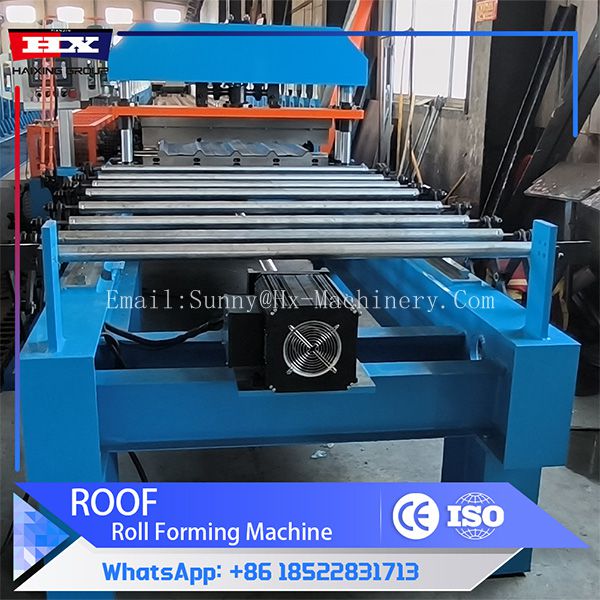

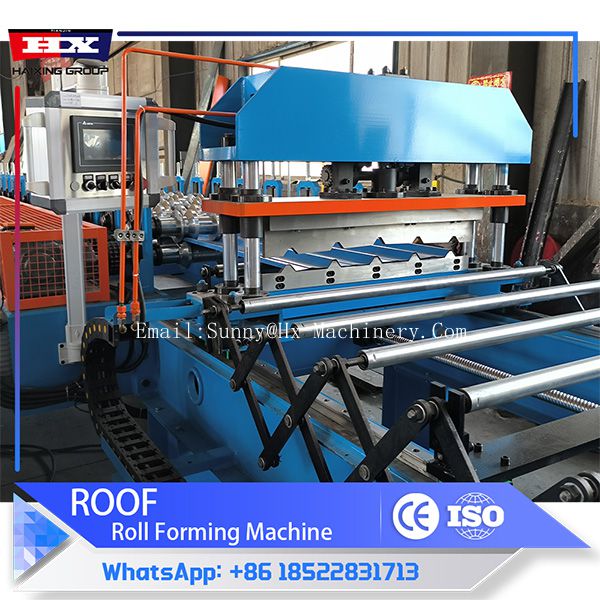

Trapezoidal Roll Forming Machine：Our trapezoidal roll forming machine builds strong, consistent sheets for roofs and walls in one automated cycle. It takes raw metal coil and completes every step—straightening, punching holes, rolling the trapezoidal profile, cutting to length, and stacking finished sheets—with precision and speed. This all-in-one system works with materials like steel, aluminum, and galvanized metal, ensuring every sheet meets exact measurements without wasted time or material.
Built for sheet metal manufacturers, this machine helps you produce more with less labor. It delivers clean, uniform trapezoidal sheets perfect for industrial buildings, warehouses, and construction projects. Reliable and efficient, it streamlines your production from coil to stacked result, so you can focus on growing your business.
| Parameters of Trapezoidal roll forming machine | |
| Weight of machine | 4800kg |
| Size of machine | 7550*1700*1900mm |

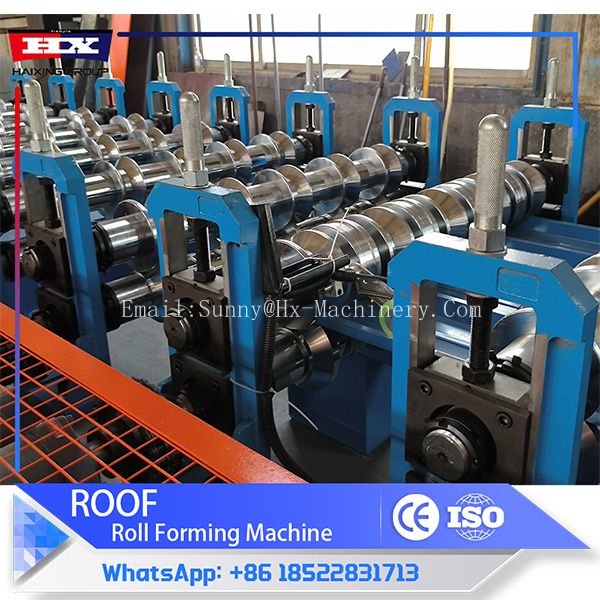

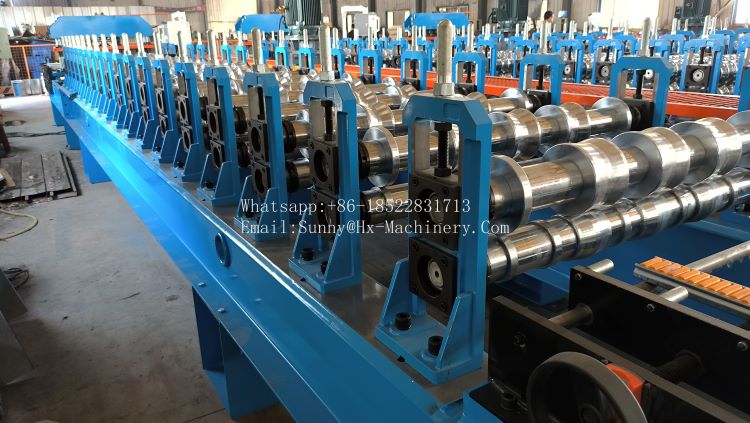

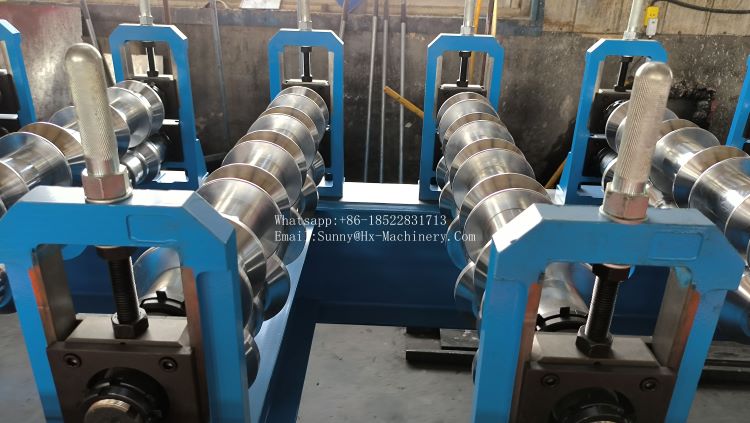

| Rollers | 15 rollers |
| Chain length | 1 inch |
| Feed Thickness | 0.3-0.8mm |
| Feed width | 914mm/1220mm |
| Cutter | Cr12 |
| Shaft diameter | 70mm |
| Material of the wheel | 45# Steel Chrome-Plated |
| Main motor power | 5.5KW |
| Pump motor power | 4KW（with fan） |
| Voltage | 220V, 60HZ, 3-phase electricity |
| Shear error | ±1.0mm |

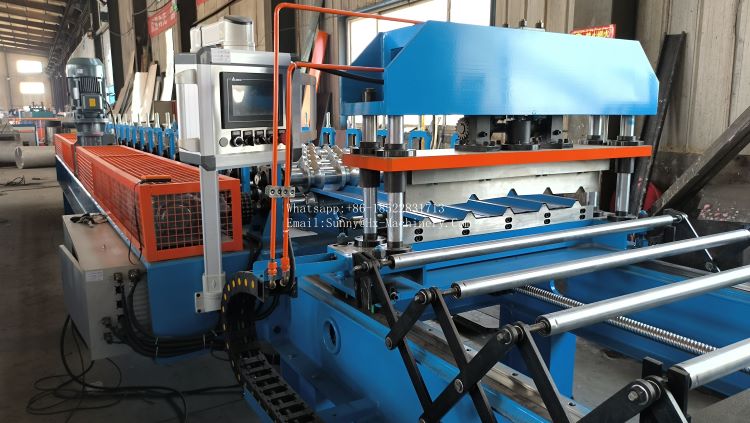

| Cutting Method | Servo Cutting |
| Forming speed | 10-15m/min |
To get a favorable price and more machines of our machine factory!
Highlight of Trapezoidal roll forming machine:
Smart Efficiency, Versatile Performance：Fully automated process from uncoiling, punching, forming, length cutting to stacking, compatible with various thicknesses (0.3-0.8mm) and materials (galvanized, color-coated, aluminum-magnesium-manganese sheets).
Precision and Stability Combined：Equipped with servo control systems and high-stiffness roll sets, ensuring waveform depth/width error ≤ 0.5mm and continuous production of over 10,000 meters without deviation.
Energy-Saving and Waste-Reducing Design：Intelligent cutting systems reduce scrap rate by over 15%, with optimized hydraulic power cutting energy consumption by 22% compared to traditional equipment.
Rapid Response to Production Needs：Modular molds allow model changes with short time, supporting custom waveforms, drip edges, wind clips, and secondary processing integration.
Long-Term Reliable Operation：Critical components undergo hardening heat treatment, with remote diagnostic interfaces and real-time production data monitoring for predictive maintenance.
Some advantages of Trapezoidal roll forming machine：
| High Efficiency | Fully automated from coil to finished sheets |
| Consistent Quality | Each sheet is precise and uniform |
| Material Versatility | Works with steel, aluminum, and coated metals |
| Cost Saving | Reduces labor and material waste |

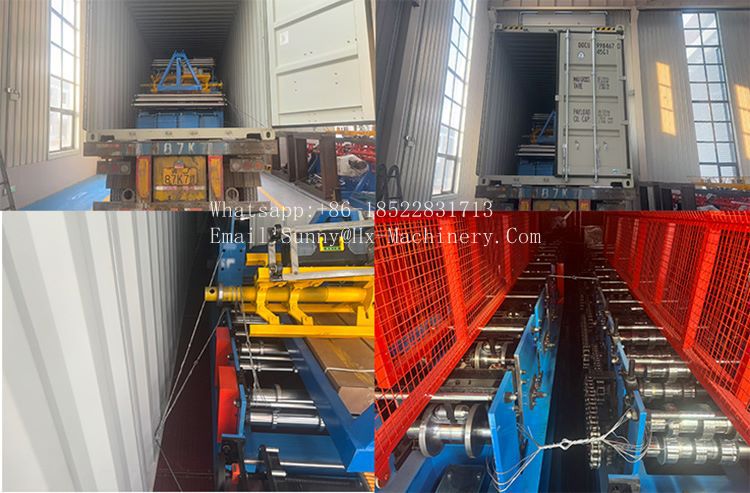

loading and shipment :
| Host packaging | Naked in a container, or with a steel structure base and fixed with a wooden box or wooden frame |
| Electronic control system | Packed in protective film or placed in individual wooden boxes |
| Precision parts | They are usually placed in special wooden boxes and filled and wrapped with foam, paper scraps or oil paper. |
| Spare parts and tools | All spare parts are placed in wooden boxes |
| Packaging labeling | There are usually clear markings on the outside of the box |
