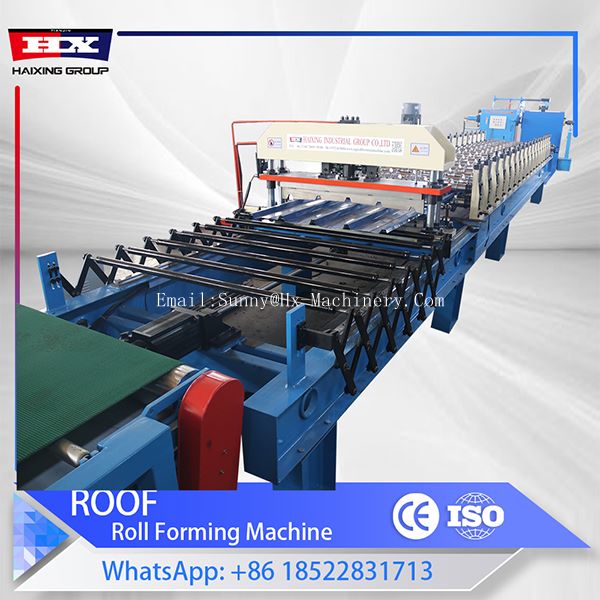

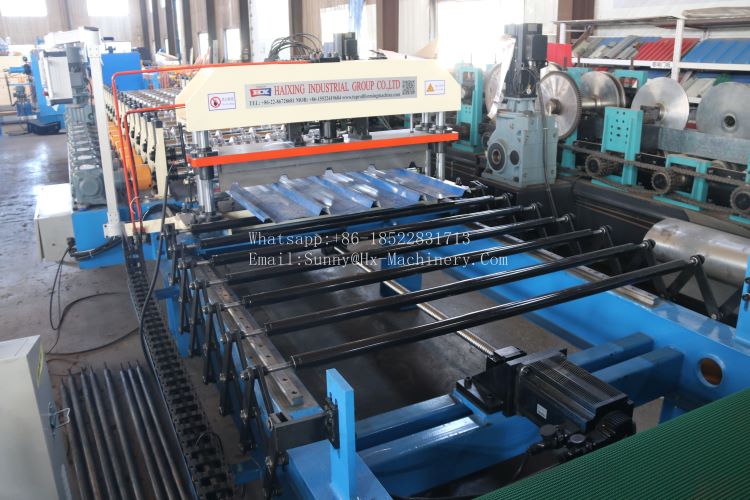

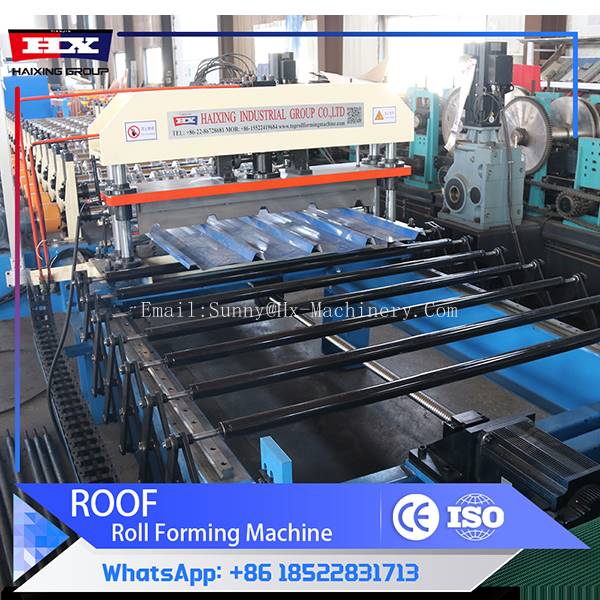

Trapezoidal Sheet Roll Forming Machine is designed for high efficiency and precision. It produces trapezoidal roofing and wall panels from steel, aluminum, or galvanized materials. The machine is easy to operate and offers customizable settings. It can handle different sheet sizes, thicknesses, and profiles.
This machine ensures accurate and consistent panel production with minimal tolerance. It is built with durable materials for long-lasting performance. The PLC control system simplifies operation and boosts productivity. The machine is energy-efficient, reducing operational costs. It operates at high speeds, increasing output capacity.
| Parameters of trapezoidal sheet roll forming machine | |
| Weight of machine | 4800kg |
| Size of machine | 7550*1700*1900mm |

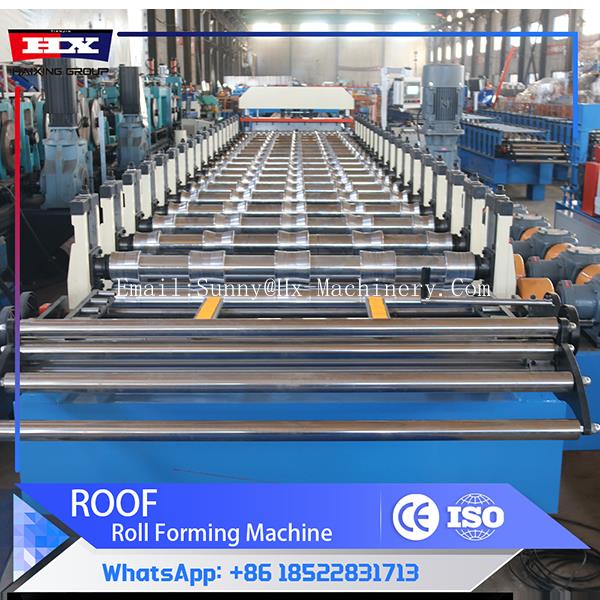

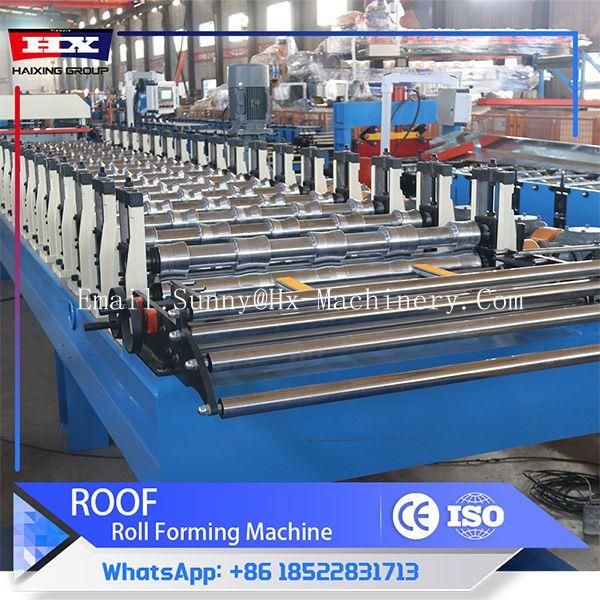

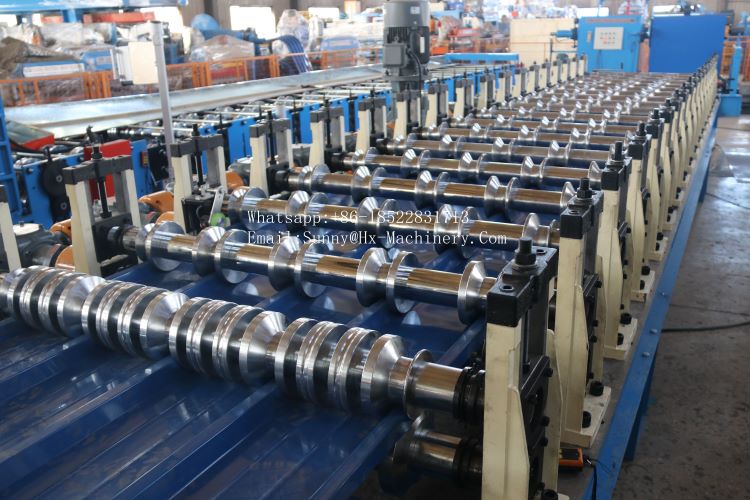

| Rollers | 15 rollers |
| Chain length | 1 inch |
| Feed Thickness | 0.3-0.8mm |
| Feed width | 914mm/1220mm |
| Cutter | Cr12 |
| Shaft diameter | 70mm |
| Material of the wheel | 45# Steel Chrome-Plated |
| Main motor power | 5.5KW |
| Pump motor power | 4KW（with fan） |
| oltage | 220V, 60HZ, 3-phase electricity |
| Shear error | ±1.0mm |
| Cutting Method | Servo Cutting |
To get a favorable price and more machines of our machine factory!
Our machine features a complete industrial line for enhanced performance and efficiency.In addition to the roll forming machine, we also have an automatic decoiler and stacker.

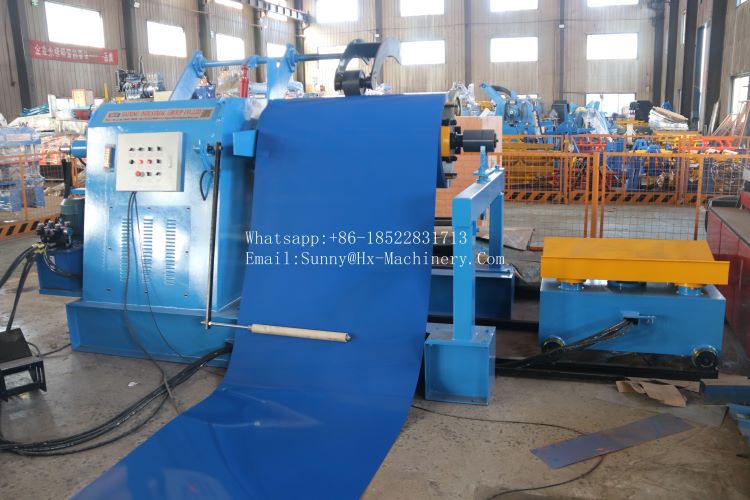

A.automatic decoiler

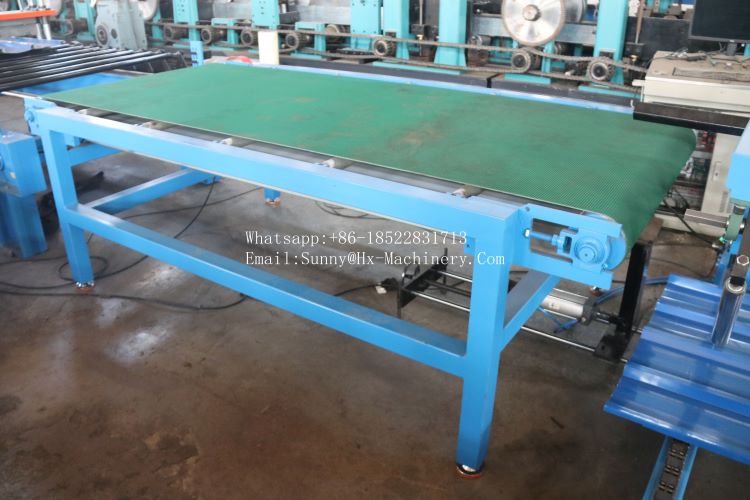

B.Conveyor belt

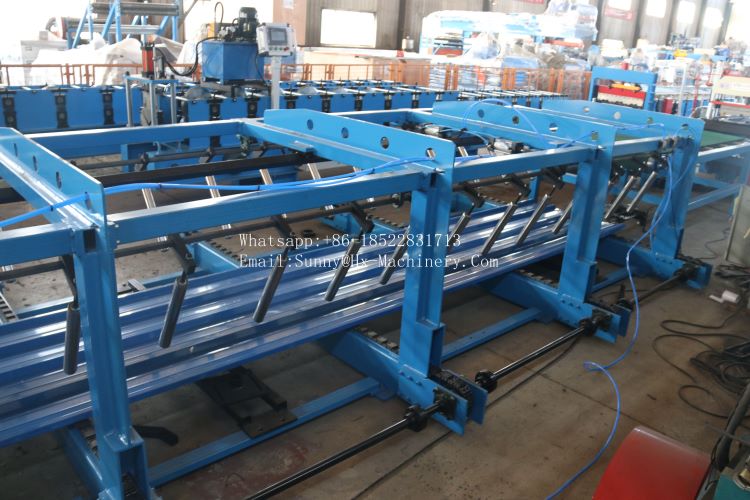

C.stacker（6m，8m，10m，12m etc.）
Our trapezoidal sheet roll forming machine is selling well in multiple countries. It is ideal for producing trapezoidal metal sheets for roofing and cladding in residential and commercial construction.
