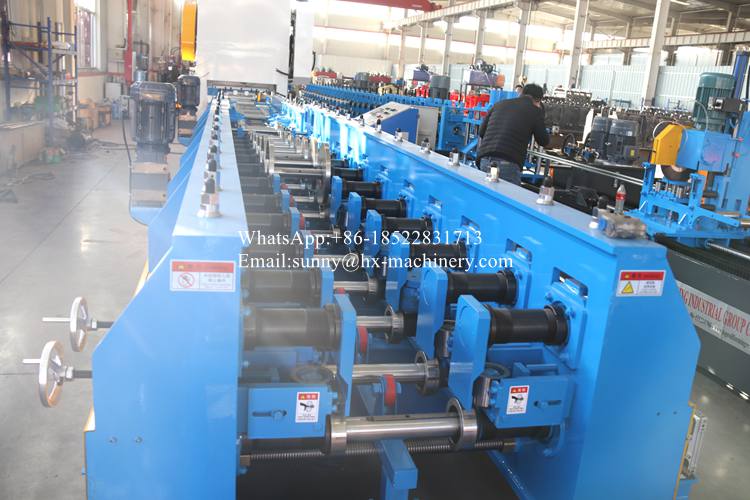

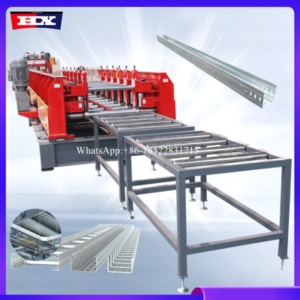

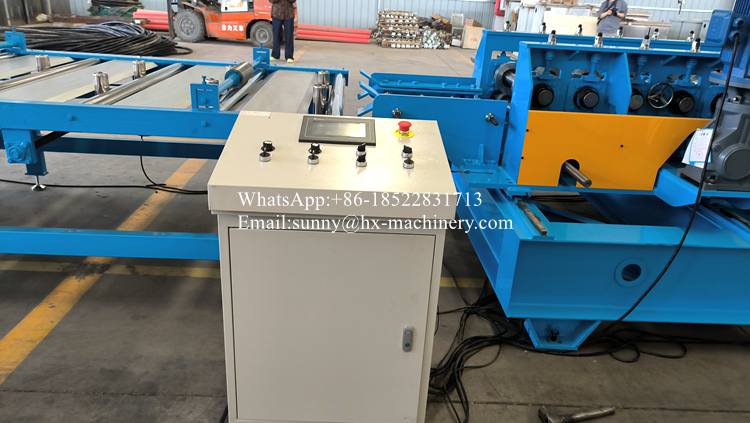

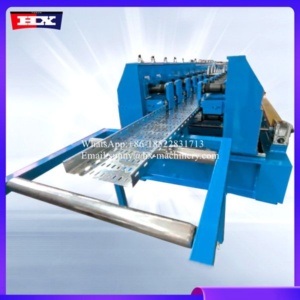

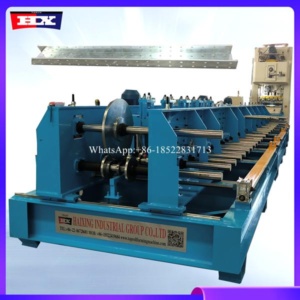

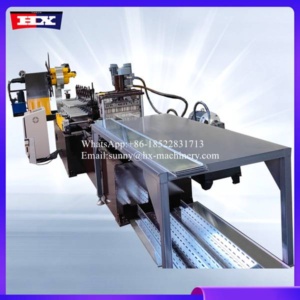

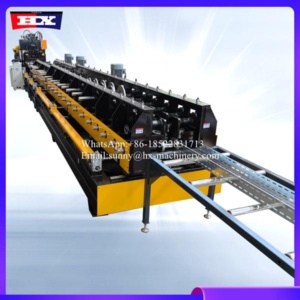

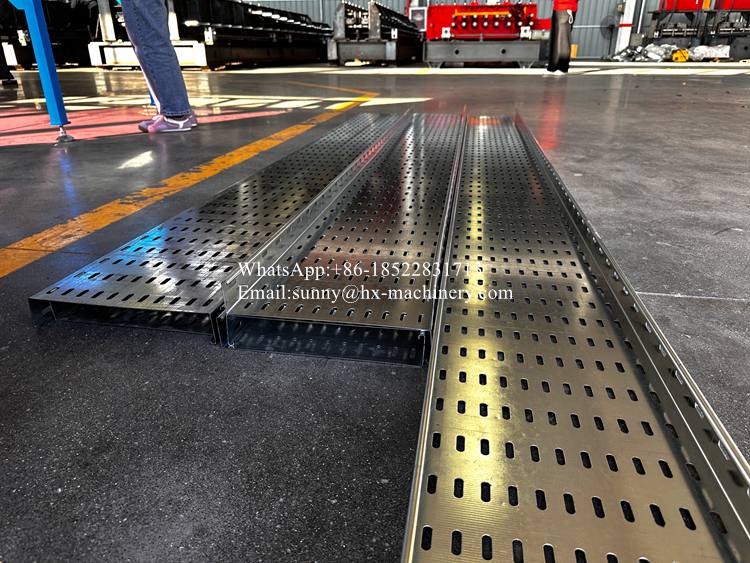

Tray roll forming machine for return flange cable is a roll forming machine specifically designed for the automated, continuous production of perforated cable trays.Simply put, it’s a “cable tray forming machine.”

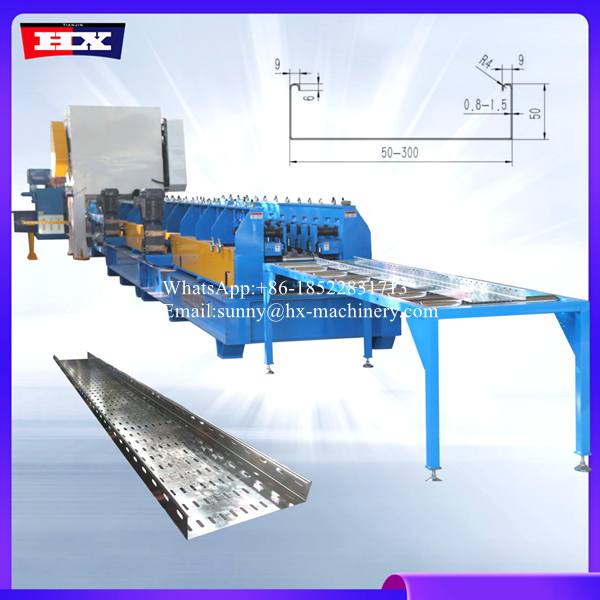

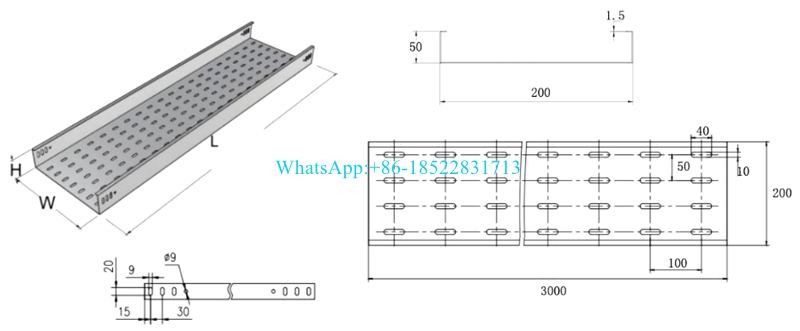

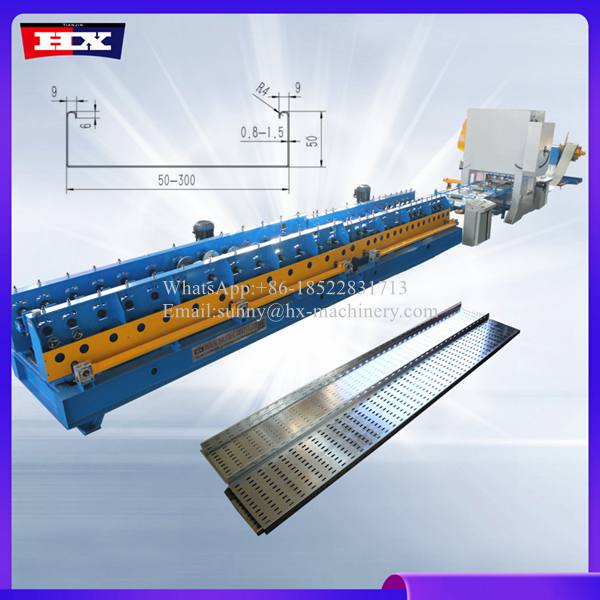

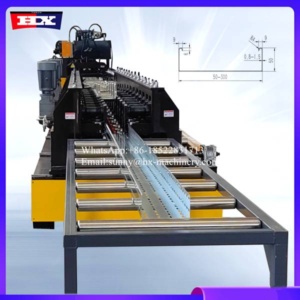

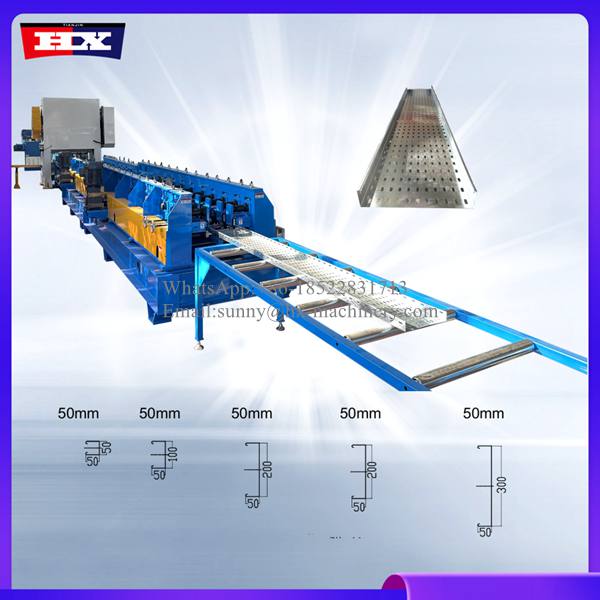

Cable Tray Drawing Model：Bottom:100-800 Waist high:50-200 technical details :
| Perforated cable tray roll forming machine parameters | ||
 |
||
| 1 | Equipment area | About 38×1.5×1.6m |
| 2 | Equipment feeding direction | In left and out right |
| 3 | Voltage | 380V 50HZ 3Phase |
| 4 | Hydraulic oil | 46# hydraulic oil |
| 5 | Gear oil | 18# hyperbolic gear oil |
| 6 | Rolling strip width | 450-950 mm |
| 7 | Rolled strip thickness | 1.0(±0.03)—2.0(±0.03) mm |
| 8 | Rolled strip material | Q235B cold rolled strip steel,hot rolled strip steel |
| 9 | Rolling workpiece length | 3000 mm |
| 10 | Online punching production speed | 6-8 m/min |
| 11 | Motor explosion-proof grade | ExdIICT4 |
| 12 | Motor protection grade | IP55 |
| 13 | LCD display | Display Electric |
| 14 | Total installed capacity of equipment | About 40KW |
| 15 | Electrical low voltage control components Control system |
Delixi or Chint |
| 16 | Frequency system | INVT |
| 17 | Bearings | Harbin Bearing |
| 18 | Reducer | Beijing Ruibofeng Reducer Co., Ltd. |
| 19 | Length Tolerance | ±2mm |

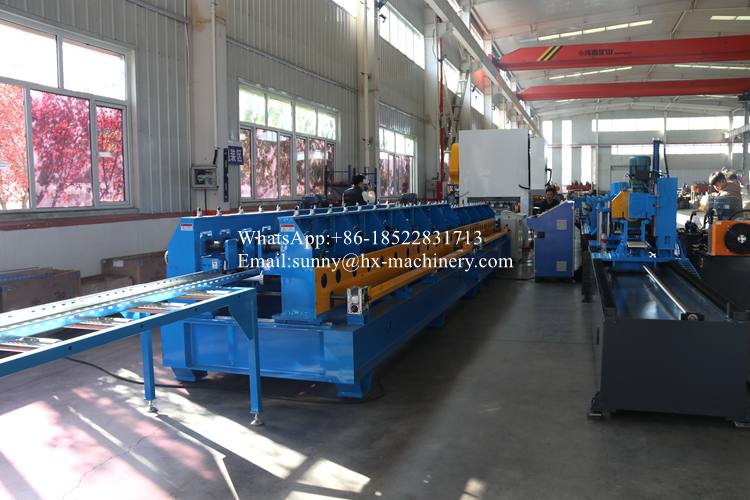

Cable tray production line detailed images

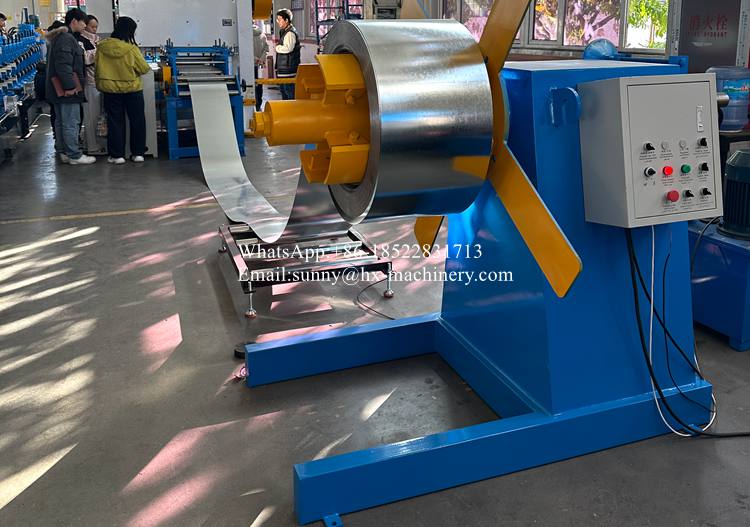

| A.Feeding:The machine begins with a large roll of metal (steel or aluminum strip) 6T Uncoiler Decoiler
1. Maximum load-bearing capacity: 6T
|
| B.Guiding and Leveling: The metal strip first passes through a guiding and leveling device to ensure the material enters the machine flat.
1.8 roller leveling
|

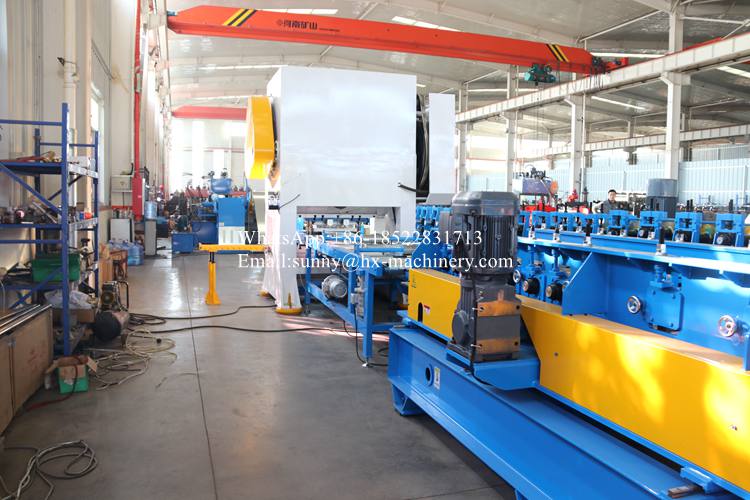

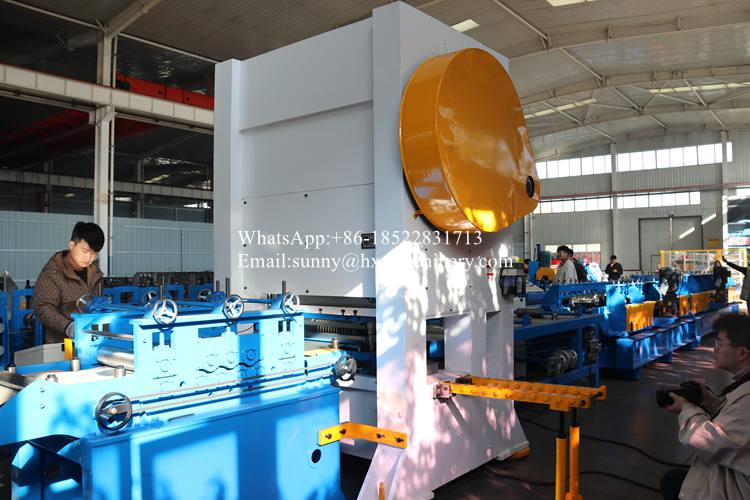

| C.Punching: Before or during the process of entering the forming rollers, an online punching unit precisely punches the designed hole pattern into the metal strip. This is a key manufacturing step in achieving the “Perforated” finish.
|
| D.High-speed platform
1. Heavy-duty roller feed: 6 meters
|

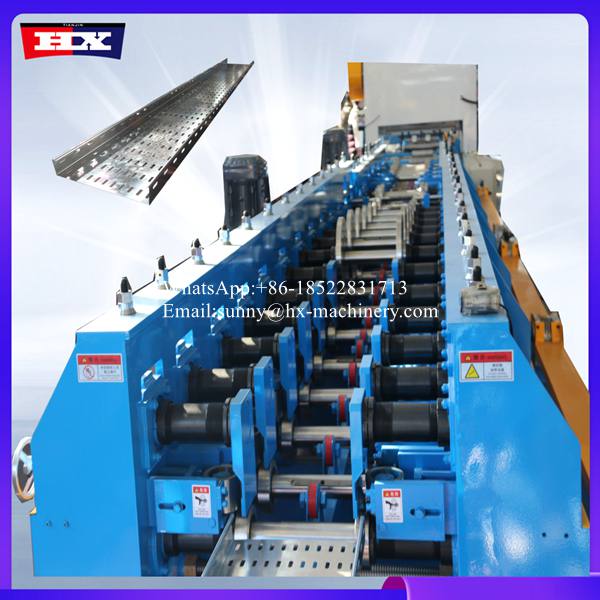

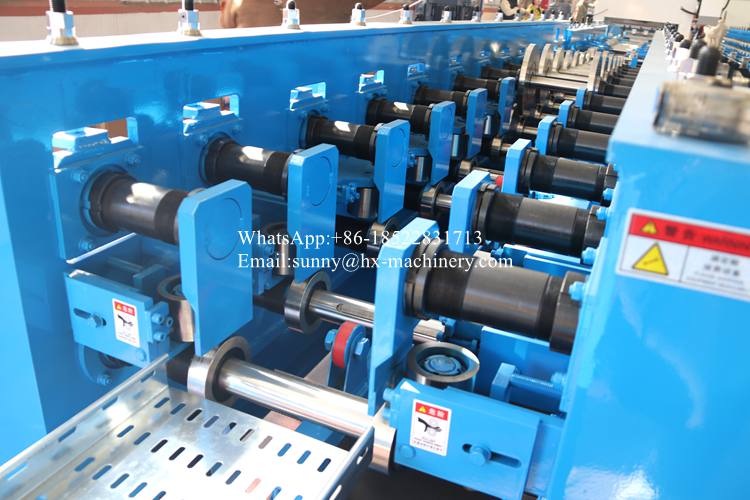

| E.Roll Forming: The punched metal strip enters the forming machine and undergoes continuous bending by multiple (usually 10-20 or more) forming rollers, gradually forming the final shape of the cable tray (such as ladder type, trough type, etc.).
1. Shaft diameter φ65mm
|
| F.Finishing: When the formed continuous cable tray reaches the preset length, a precision cutting device (such as hydraulic shears or flying saws) cuts it into finished products of a fixed length.
|

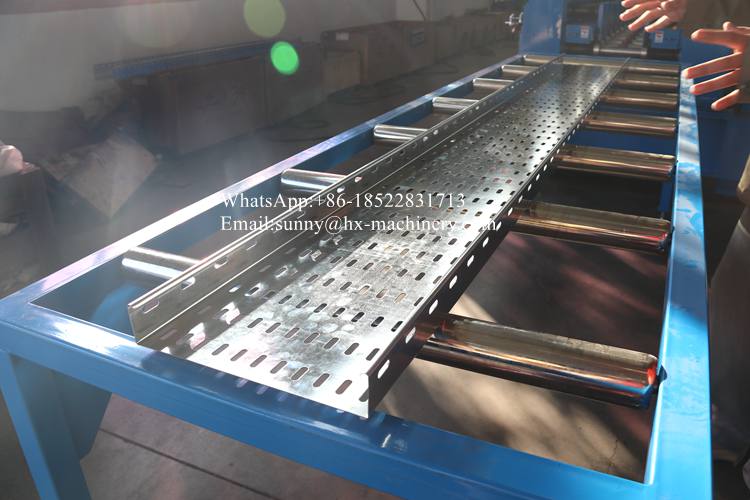

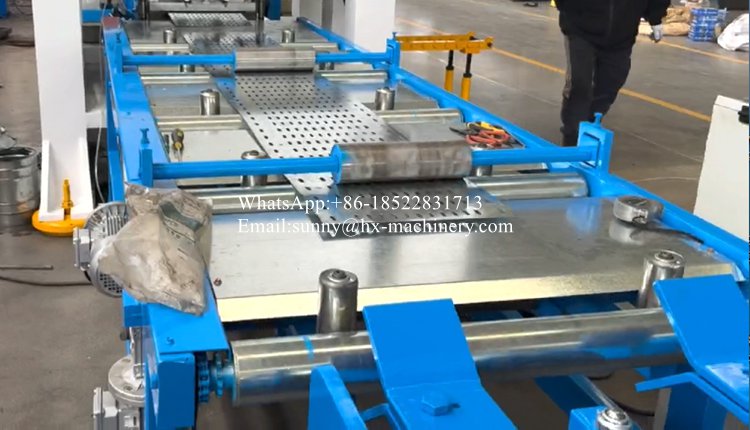

| G.Discharging platform
1. 3m platform
|

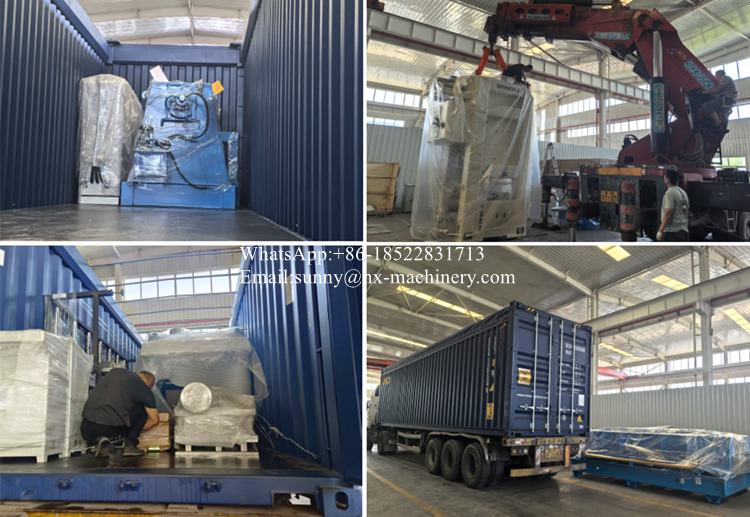

Perforated cable tray roll forming machine loading and shipment
| Host packaging | Naked in a container, or with a steel structure base and fixed with a wooden box or wooden frame |
| Electronic control system | Packed in protective film or placed in individual wooden boxes |
| Precision parts | They are usually placed in special wooden boxes and filled and wrapped with foam, paper scraps or oil paper. |
| Spare parts and tools | All spare parts are placed in wooden boxes |
| Packaging labeling | There are usually clear markings on the outside of the box |
About our service for galvanized cable tray making machine
| Pre-sales consultation and customization | Provide equipment selection suggestions and production line configuration solutions based on your needs (such as bridge type, material, specifications, and output), and accept customized designs |
| Equipment installation and debugging | Professionals will come to install the equipment and conduct on-site debugging to ensure the normal operation of the equipment and the production of qualified products. |
| Technical training and operation | Provide training for your operation and maintenance personnel, including equipment operation, programming (such as touch screen settings), daily maintenance, simple troubleshooting, etc. |
| After-sales service and support | Provide warranty period (usually 1 year or as agreed), remote technical guidance, fault response, and regular return visits. |
| Repair and spare parts supply | Provide equipment maintenance services and supply original spare parts (such as rollers, dies, wearing parts, etc.) to ensure the service life and accuracy of the equipment. |
