Unistrut machine solar strut channel roll forming is designed to produce solar strut with thickness from 2.0mm to 2.5mm, dimension size of 21*21, 41*21， 41*41， 41*52，41*62，41*72，41*82 or as per your requirement. The machine is composed of decoiler, leveler, servo feeder, punch press, main forming machine, cutting device, outer table, hydraulic stations and PLC control system. The advantage of our downspout gutter roll forming machine are high strength, high automation, easy operation and lower cost.
Unistrut machine solar strut channel roll forming working flow
Uncoiling → Leveling → Roll forming → Punching → Flying saw non-stop cutting → Products receiving table
| Unistrut c channel roll forming machinemain parameters | |
| Forming Rollers | 26rollers |
| Roller Material | Cr12 mold steel, vacuum quenching treatment, hardness HRC58–62 |
| Main Shaft Diameter | Finished diameter Ø80 mm |
| Main Shaft Material | 45# steel with quenching and tempering treatment |
| Motor Power | 18.5 kW *2 motors, K97 series hard-tooth gearbox |
| Transmission | Gearbox drive, coupled with universal couplings |
| Machine Frame | Cast iron archway 48 |
| Servo Punching | Non-stop servo punching,dual-module reverse punching |
| Cutting Method | Flying tracking saw cutting (with scrap) |
| Discharge Table | 3 m × 2 Pieces, roller-type support |
| Forming Thickness | 1.5-2.5mm |
| Forming Speed | 10-15m/min |
| Inverter | INVT brand |
| LCD Screen | Display Control Electric |
| Low-Voltage Electrical Components | Delixi or Chint |
| Hydraulic System | 11 kW × 2 pump station (for punching) 4 kW pump station (for cutting) 3 kW pump station (for pressing) |
| Bearings | Harbin Bearings |
| Reducer | Ruibofeng Reducer Co., Ltd. |
| Decoiler | Motorized decoiler with hydraulic expanding mandrel, load capacity 5 tons Inner diameter: 480–520 mm Max. outer diameter: 1600 mm |
| Leveling Section | 1.5 rollers 2. Leveling shaft diameter 70 mm 3. Material 40Cr high frequency quenching |

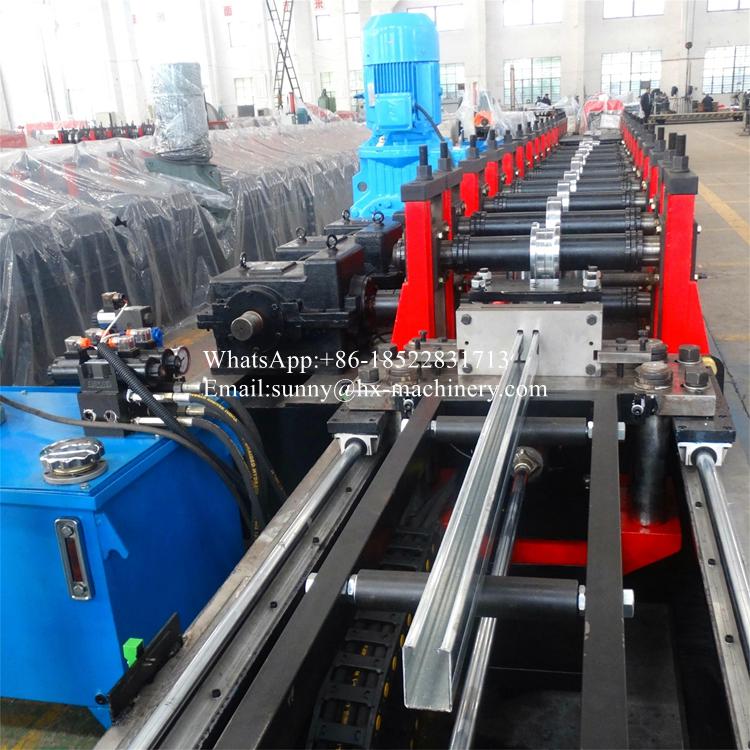

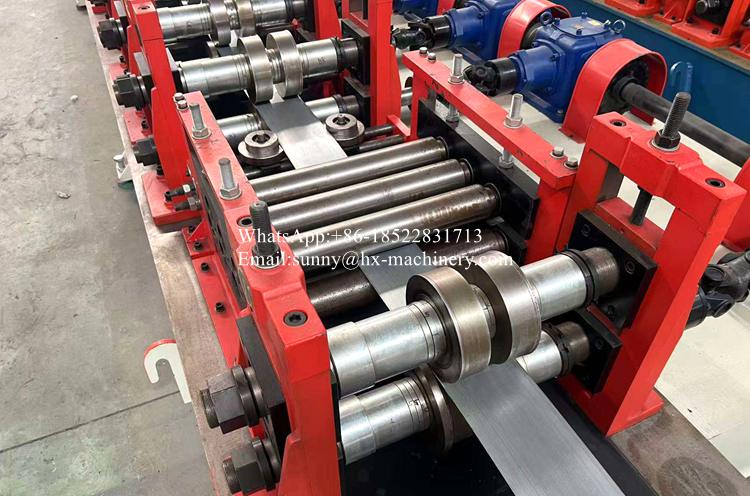

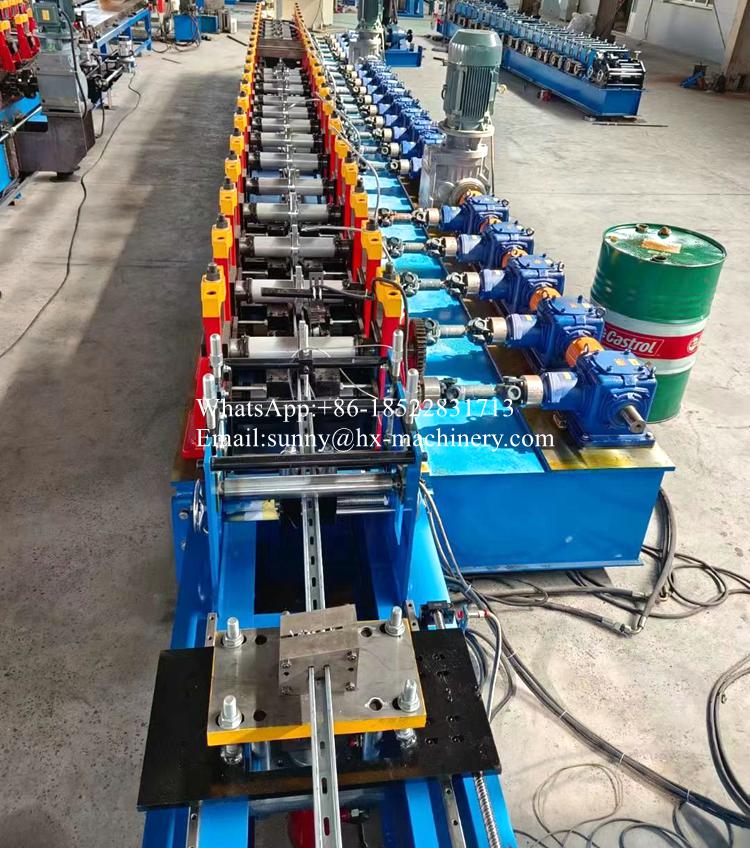

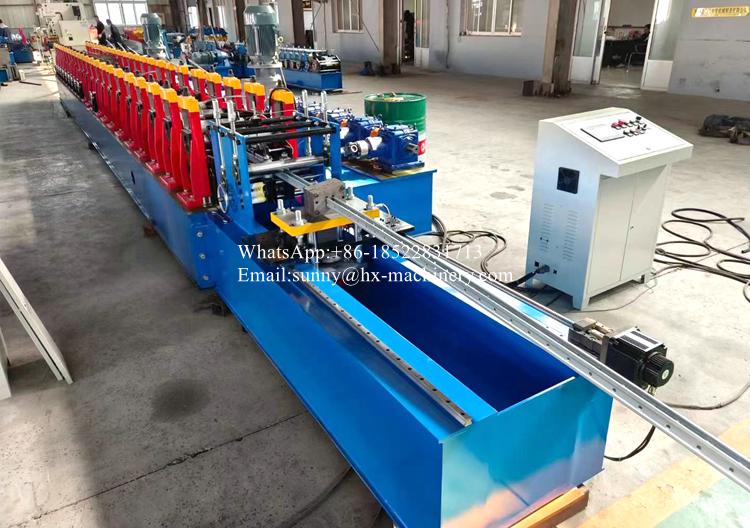

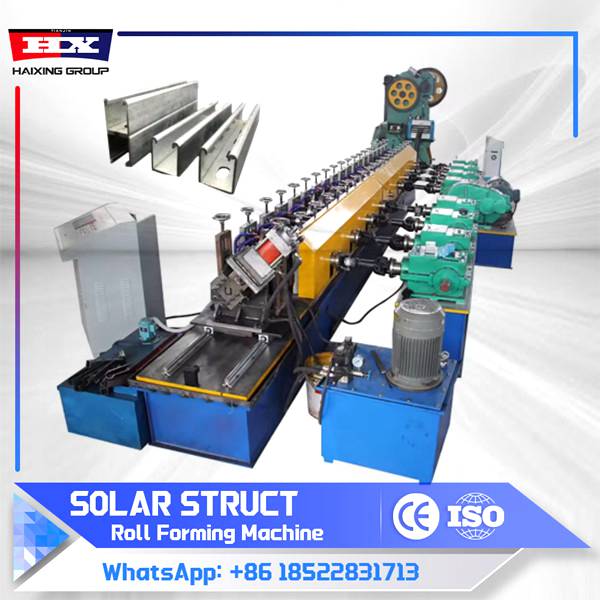

Solar strut roll forming machine photos showing
