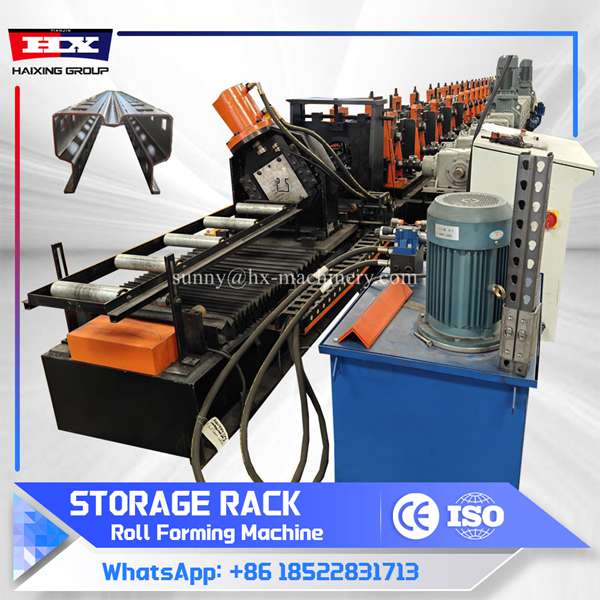

Upright roll forming machine produces uprights with uniform geometry and perfectly aligned connector holes, ensuring safety, reliability, and ease of assembly in the field.This storage rack shelf frame cold roll forming machine controlled by PLC-controlled systems for synchronized operation of uncoiling, punching, forming, cutting, and stacking,minimizing labor and maximizing efficiency.
Upright roll forming machine working flow
Uncoiling → Leveling → Roll forming system→ Punching system→ Cutting system → Products receiving table
| Upright roll forming machine main parameters | |
| Forming Rollers | 19rollers |
| Roller Material | Cr12 mold steel, vacuum quenching treatment, hardness HRC58–62 |
| Main Shaft Diameter | Finished diameter Ø90 mm |
| Main Shaft Material | 45# steel with quenching and tempering treatment |
| Motor Power | 11 kW *2 motors, K97 series hard-tooth gearbox |
| Transmission | Gearbox drive, coupled with universal couplings |
| Machine Frame | Cast iron archway 48 |
| Servo Punching | Non-stop servo punching,dual-module reverse punching |
| Cutting Method | Flying tracking saw cutting (with scrap) |
| Discharge Table | 3 m × 2 Pieces, roller-type support |
| Forming Thickness | 1.5-2.5mm |
| Forming Speed | 10-15m/min |
| Inverter | Delta brand |
| LCD Screen | Display Control Electric |
| Low-Voltage Electrical Components | Delixi or Chint |
| Hydraulic System | 5.5Kw |
| Bearings | Harbin Bearings |
| Reducer | Ruibofeng Reducer Co., Ltd. |
| Decoiler | Motorized decoiler with hydraulic expanding mandrel, load capacity 5 tons Inner diameter: 480–520 mm Max. outer diameter: 1600 mm |
| Leveling Section | 1.5 rollers 2. Leveling shaft diameter 70 mm 3. Material 40Cr high frequency quenching |

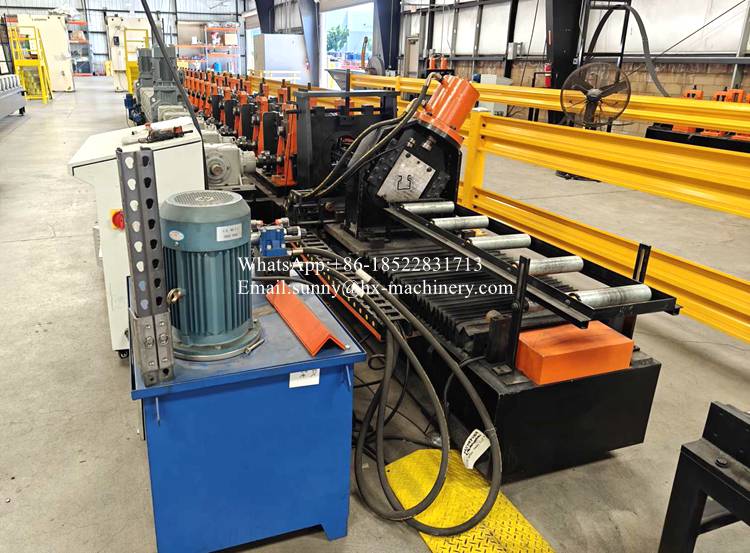

Upright rack roll forming machine each part photos showing
Specialized & Emerging Applications For shelf storage rack cold roll forming machine
| Shelf Panels | This equipment produces shelf panels for supermarkets, warehouses, and other similar applications. It can process shelves of varying widths. |

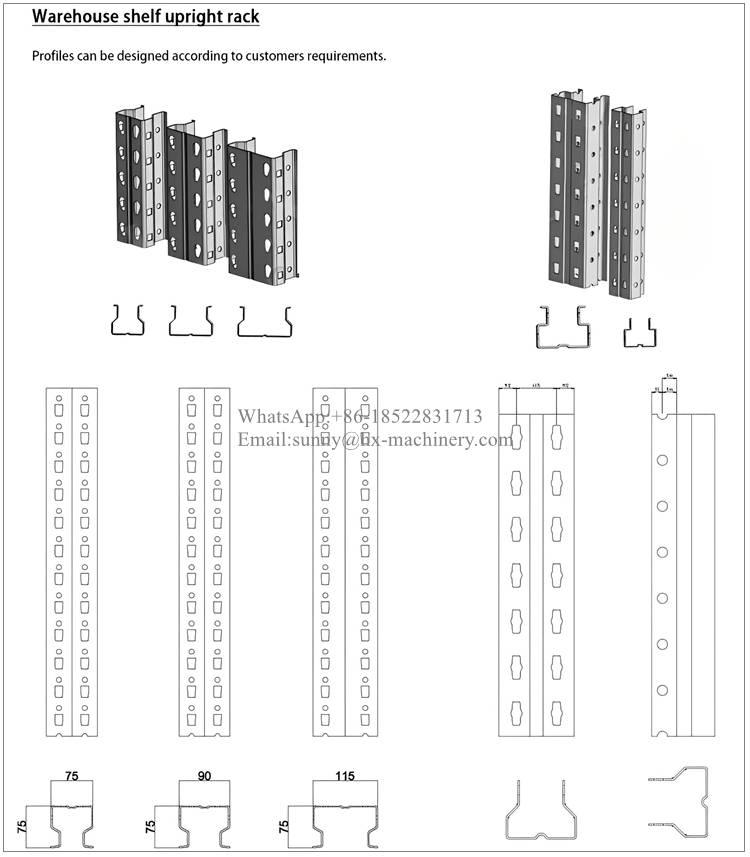

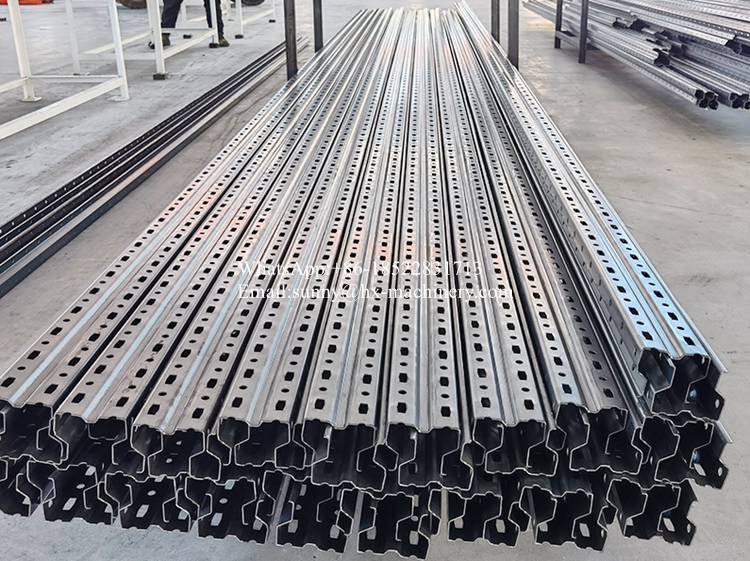

| Uprights/Posts | The vertical support columns for manufacturing shelving are typically punched in-line to allow for later height adjustments. |
| Rack Beams | Produces main load-bearing components for connecting columns, load-bearing shelves, or pallets. |

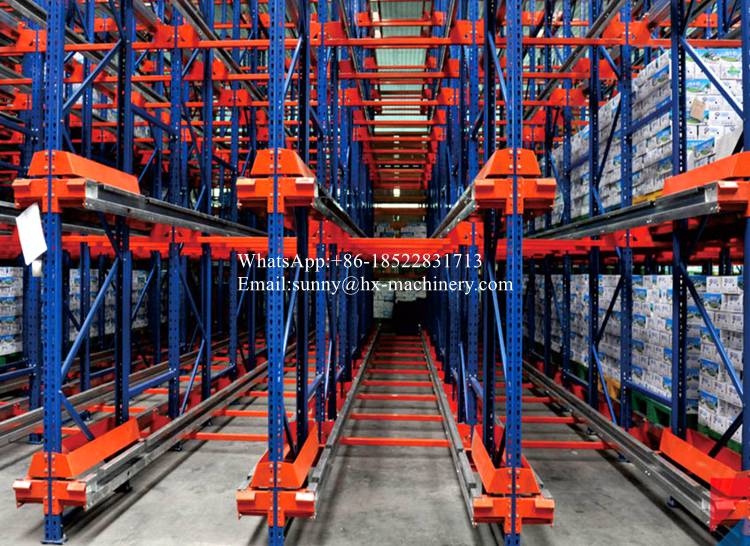

| Pallet Racking | This type of racking is used to manufacture pallet-bearing racks, drive-in racks, and similar systems. These racks have high load-bearing capacity and high storage density. |
| Tool Racks | Specialized storage equipment for manufacturing heavy molds that can withstand hundreds of kilograms to several tons. |
